SKU: HELIX_P_3M
₹ 41,999
(inclusive of all taxes)
per Set
• 3” / 75 mm cone midrange speaker with novel glassfiber:paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping
• Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
• Low:resonant basket made from glassfiber reinforced plastic with optimized voice coil cooling for high power handling
• Grille included
Secured
Payments
Fast &
Reliable delivery
Wide Selection
of Products
1 YEAR
Warranty
₹ 41,999
inclusive of taxes

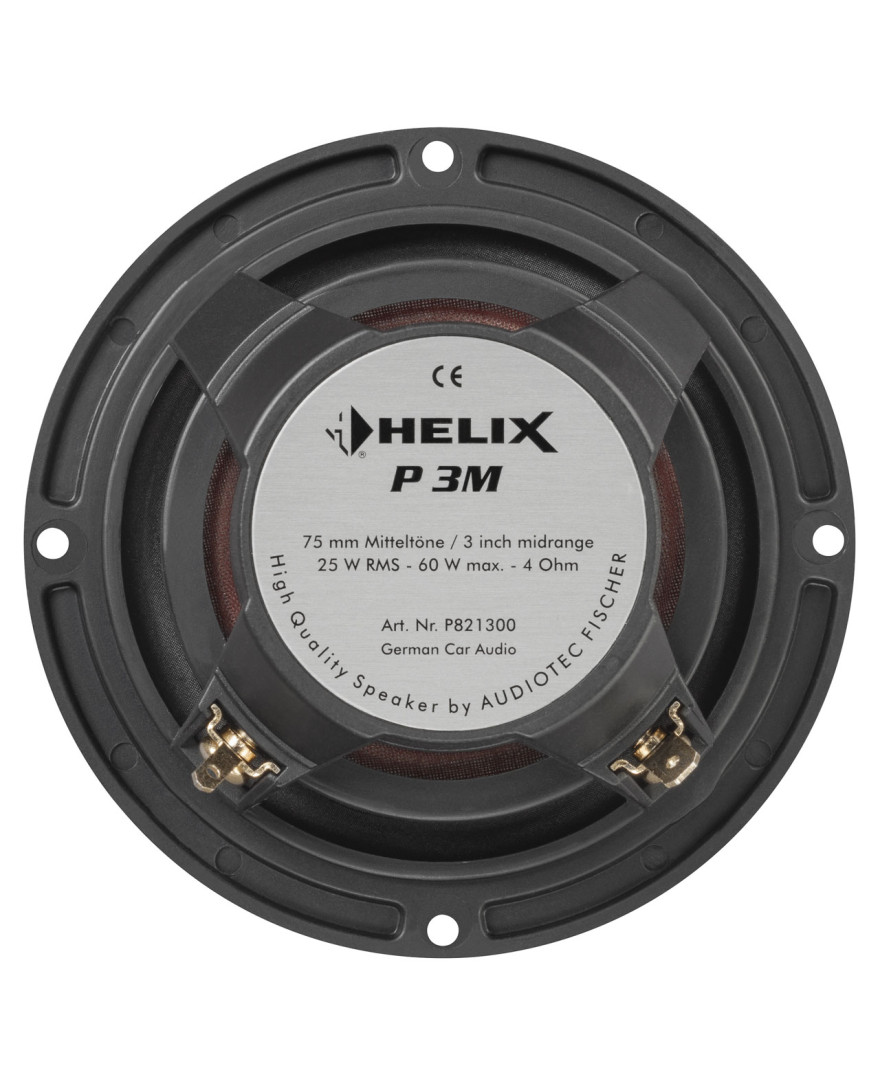

The P 3M cone midrange speaker is the perfect complement for every fully active driven 2:way speaker system. Its lightweight glassfiber:paper compound cone guarantees excellent impulse response and minimum sound discoloration, whereas the highly efficient neodymium magnet system provides for a linear drive and minimum distortion. Additionally, the flow:optimized basket not only prevents rear reflections, but also ensures compression:free sound reproduction thanks to optimum voice coil cooling. The P 3M develops its full tonal potential in a sealed, dampened enclosure.
Scope of delivery
2 x Midrange speaker HELIX P 3M
2 x Grille
1 x Data sheet
1 x Mounting pattern
0.2 liter (System resonance: | 230 Hz) Crossover frequency |
0.4 liter (System resonance: | 190 Hz) Crossover frequency |
0.6 liter (System resonance: | 170 Hz) Crossover frequency |
Brand: | Helix |
Compliance: | 415 µm/N |
Cone area: | 30 cm² |
Cone Material: | Glassfiber |
DC Resistance: | 3.3 Ω |
Electrical Q factor: | 0.50 |
Equivalent air volume: | 0.54 L |
Force factor: | 4.4 Tm |
Frequency response: | 400 Hz |
Impedance: | 4 Ω |
Installation depth: | 37 mm / 1.46" |
Installation diameter: | 73 mm / 2.87" |
Max. linear excursion: | +/ |
Mechanical Q factor: | 4.72 |
Mechanical resistance: | 0.63 kg/s |
Min. filter slope: | 24 dB/Oct. |
Moving mass: | 3.7 g |
Net volumes: | Recommended DSP / amplifier settings |
Outer diameter: | 90 mm / 3.54" |
Power RMS / max.: | 75 / 150 Watts |
Resonance frequency: | 130 Hz |
Sensitivity 1 W / 1 m: | 86 dB |
Total Q factor: | 0.45 |
Type: | Speaker |
Voice coil diameter: | 25 mm |
Voice coil winding height: | 8 mm |
